Functionality:
In Moskito plans with different graduations can be indicated at the same time side by side. With the graduation-steered announcement it is caused the plan contents (Symbols, lines etc.) can be indicated by plans with different graduations, final-speaking to the respective plan graduation side by side.
Thus, for example, a symbol from a plan with graduation is shown 1:500 relatively largely. If one pushes this now in a being quite wrong plan with the graduation 1:2500, the symbolic size to the graduation of the plan changes final-speaking and the symbol now seems smaller.
The advantage of this kind separately to be selected of the representation is the individual equipment in view of the respectively presecuted aim. Thus the announcement can be optimised if, e.g., a compressed area stands in a plan in the centre of the consideration and the rural area from the adjoining plan, should appear All over the country on the screen or in the pressure. The centre could be modeled in the graduation 1:500, or greater, be registered, while only secondarily notwenige, rural area, in the graduation can be shown 1:2500. Besides, all notation symbol symbols, texts and lines are adapted according to the respective plan graduation in her size.
Equipment:

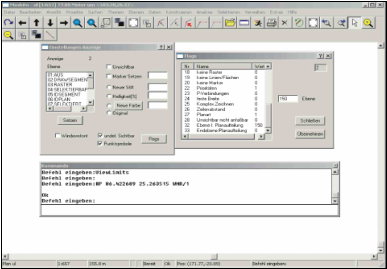

About the menu of Administer / settings / announcement one reaches to the „dialogue box of settings“ Announcement. There one selects Flags and an other dialogue box with the list of the individually Flags opens. In the list is of the Flags the point 32 must be selected. The Flags 32 and 33 are planned for the graduation-steered announcement. If you have selected the right Flag they carry of right in the box, in the field "Level", the Layer of the plans one for which the announcement settings should be switched (e.g., 150). Should plans from different Layern be switched is the smallest Layer (only numerical Layer) to put down under the Flag 32, and the highest Layer under the Flag 33.
Specific features:
The details of the plans (Symbols / texts) have to do a high priority at the announcement or have. For it this is the reason these contents to the higher objects must be assigned. I.e. First the symbol must be confessed to the system and only then it can arrange this in the higher category.
The plans can be accommodated in one, or, however, in several Layern (see equipment). Besides, the smaller structures are importantly (e.g., texts supra symbols) are assigned to the lower Layern, and being higher structures to the higher Layern.
